Explore Our Various Oil Servicing Dispensers
1-GALLON OIL DISPENSER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- PART NUMBER 1-OIL TYPE and the Oil Sign.
- EXAMPLE:
1-2197 OR 1-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
10” x 12” x 4” - Net Weight (Dry)
15 lbs. (6.803kg) - Shipping Carton
10” x 10” x 24”
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
1 Gallon (3.79 L) - Pressure Output
¼ PINT (120 cc) - Hose Length
7 Foot - Filter 10 Micron
Nominal3 micron Available
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
1-Gallon Oil Servicing Dispenser, Low Pressure, Unit
New P/N as of 30 September 2021 is 1G01U-(Signify Oil), Old P/N 1 (Signify Oil) is now “FOR REFERENCE ONLY"
This unit is ideal for limited access areas and light servicing tasks. It’s solid “NO SPILL” container design features U.S. Manufacturing & Design’s exclusive pump with built in closed containment system that mitigates environmental contamination. This unit can be designated to a variety of oil types by color and signage.
1-GALLON OIL DISPENSER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- PART NUMBER 1-OIL TYPE and the Oil Sign.
- EXAMPLE:
1-2197 OR 1-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
10” x 12” x 4” - Net Weight (Dry)
15 lbs. (6.803kg) - Shipping Carton
10” x 10” x 24”
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
1 Gallon (3.79 L) - Pressure Output
¼ PINT (120 cc) - Hose Length
7 Foot - Filter 10 Micron
Nominal3 micron Available
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
2-GALLON OIL DISPENSER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Print Unit Number ( 2 - OIL TYPE)
- EXAMPLE:
2-2197 OR 2-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
12 3/16” x 9 1/4” x 18” - Net Weight (Dry)
15.2 lbs. (6.75kg) - Gross Weigh
18 lbs. (8.18 kg)Shipping - Carton
14” x 9 1/4” x 18 3/4”
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
2 Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
7 Foot - Filter
10 Micron Nominal
(3 Micron Available)
EACH SYSTEM INCLUDES
- 2 gallon Capacity Container
- Translucent Polyethylene Container
- Double-Seal Pump Head
- 7 Foot Hose
- Color-Coded Fluid Signage
- Compatible Seals and Hoses
- Serial Number for easy tracking
- Quick Disconnect Couplers available
AVAILABLE OPTIONS
- Fluid Discharge Meter
- In-line Water Stop filter
- Closed System Kit
SYSTEM FEATURES
- Compact
- All Weather Performance
- Environmentally Safe
- No-spill
- Ergonomically Designed
- Lightweight – Easy to Handle
Get a quote
2-Gallon Oil Servicing Dispenser, Low Pressure, Unit
New P/N as of 30 September 2021 is 2G01U-(Signify Oil), Old P/N 2 (Signify Oil) is now “FOR REFERENCE ONLY"
USMDI’s number one seller. This 2-Gallon is primarily used for servicing Constant Speed Drives and Integrated Drive Generators on turbine engines, It’s also compatible for topping off engine oil and maintaining hydraulics systems. Our products design can be adapted to customer specific needs, and has the potential for application in multiple industries where oil servicing is required. Its compact, lightweight, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to handle. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
2-GALLON OIL DISPENSER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Print Unit Number ( 2 - OIL TYPE)
- EXAMPLE:
2-2197 OR 2-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
12 3/16” x 9 1/4” x 18” - Net Weight (Dry)
15.2 lbs. (6.75kg) - Gross Weigh
18 lbs. (8.18 kg)Shipping - Carton
14” x 9 1/4” x 18 3/4”
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
2 Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
7 Foot - Filter
10 Micron Nominal
(3 Micron Available)
EACH SYSTEM INCLUDES
- 2 gallon Capacity Container
- Translucent Polyethylene Container
- Double-Seal Pump Head
- 7 Foot Hose
- Color-Coded Fluid Signage
- Compatible Seals and Hoses
- Serial Number for easy tracking
- Quick Disconnect Couplers available
AVAILABLE OPTIONS
- Fluid Discharge Meter
- In-line Water Stop filter
- Closed System Kit
SYSTEM FEATURES
- Compact
- All Weather Performance
- Environmentally Safe
- No-spill
- Ergonomically Designed
- Lightweight – Easy to Handle
Get a quote

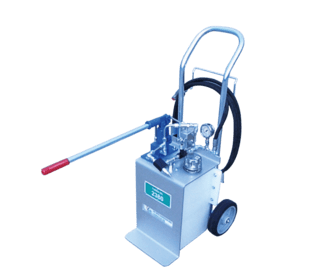

5-Gallon Oil Servicing Dispenser, Low Pressure, Cart
New P/N as of 30 September 2021 is 5G01C-(Signify Oil), Old P/N 5 (Signify Oil) is now “FOR REFERENCE ONLY"
Our 5-Gallon Cart is hangar and flight line proven. It can be used for servicing Constant Speed Drives and Integrated Drive Generators. It’s also compatible for topping off engine oil and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to handle. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
5-GALLON OIL DISPENSER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Print Unit Number ( 5 - OIL TYPE)
- EXAMPLE:
5-2197 OR 5-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
23 3/4” x 40 1/2” x 24 1/2” - Net Weight (Dry)
37.2 lbs. (16.81kg) - Gross Weight
74.5lbs. (33.86 kg) - Shipping Carton
42 1/2” x 18 1/2” x 241/2”
LOW PRESSURE UNIT
- Operating Temperature Range:
-40°F to 120° - Fluid Capacity:
5-Gallon (18.5 L) - Pressure Output:
175 PSI (1206.5 KPA) - Volume per Stroke:
¼ PINT (120 cc) - Hose Length:
15 Foot - Filter:
10 Micron Nominal
(3 Micron Available)
EACH SYSTEM INCLUDES
AVAILABLE OPTIONS
- Fluid Discharge Meter
- In-line Water Stop filter
- Closed System Kit
Get a quote
20-Gallon, Oil Servicing Dispenser, Low Pressure, Cart
New P/N as of 30 September 2021 is 20G01C-(Signify Oil), Old P/N 20-(Signify Oil) is now “FOR REFERENCE ONLY”
Our 20-Gallon Cart is hangar and flight line proven. It can be used for servicing Constant Speed Drives and Integrated Drive Generators. It’s also compatible for topping off engine oil and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to handle. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
20 GALLON CART FLUID DISPENSER
DO NOT MIX FLUIDS
PART NUMBERS
- 20-2380
- 20-2197
- 20-ENGINE OIL
- 20-5606
- 20-MOBIL JET II
- 20-SKYDROL
- 20-HYDRAULIC OIL
- 20-HYJET IV
- OTHERS AVAILABLE
SIGN
- EXXON 2380
- 2197
- ENGINE OIL
- 5606
- MOBIL JET II
- SKYDROL
- HYDRAULIC OIL
- HYJET IV
SEAL
- FKM
- FKM
- FKM
- FKM
- FKM
- EPDM
- EPDM
- EPDM
LOW PRESSURE UNIT
- FLUID CAPACITY 20 GALLONS (75.7 L)
- PRESSURE OUTPUT 175 PSI (854.4 kPa)
- OUTPUT PER STROKE 1/4 PINT (120cc)
- HOSE LENGTH 15 FT
- STANDARD FILTER 10 MICRON NOMINAL
(3 MICRON IS AVAILABLE
WEIGHTS AND DIMENSIONS
- PRODUCT DIMENSION: 23-3/4” x 40-1/2” x 24-1/2”
- NET WEIGHT (DRY) 37 lbs. (16.81 kg.)
- GROSS WEIGHT 74.5 lbs. (33.86 kg.)
- SHIPPING CARTON 42-1/2” x 18-1/2” x 24-1/2"
EACH SYSTEM INCLUDES
- 20 GALLON CAPACITY CONTAINER
- TRANSLUSCENT POLYETHYLENE CONTAINER
- DOUBLE-SEAL PUMP HEAD
- COLOR-CODED FLUID SIGNAGE
- COMPATIBLE SEALS AND HOSES
- SERIAL NUMBER FOR EASY TRACKING
SERVICE POINTS
- ENGINE
- APU
- CSD/IDG
- HYDRAULIC SYSTEMS
AVAILABLE OPTIONS
- FLUID DISCHARGE METER
- IN-LINE WATER STOP FILTER
- CLOSED SYSTEM KIT
- 3 MICRON FILTER
Get a quote
BASIC 5-GALLON TOWABLE FLUID DISPENSER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number ( 5BT - OIL TYPE)
- 5BT-2197 OR 5BT-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 28 1/2” x 30” - Net Weight (Dry)
110 lbs. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Rang
-40°F to 120° - Fluid Capacity
5-Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
AVAILABLE OPTIONS
Get a quote
5-Gallon Oil Servicing
Dispenser, Low Pressure, Basic Towable Cart
New P/N as of 30 September 2021 is 5G01BTC-(Signify Oil), Old P/N 5BT-(Signify Oil) is now “FOR REFERENCE ONLY"
USMDI’s 5-gallon, Basic Towable Cart is mobile for larger fleet service. It’s also compatible for topping off engine oil and maintaining hydraulics systems, servicing Constant Speed Drives and Integrated Drive Generators on turbine engines. This products features can be adapted to customer specific needs, and has the potential for application in multiple industries where oil servicing is required. Its’ durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
BASIC 5-GALLON TOWABLE FLUID DISPENSER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number ( 5BT - OIL TYPE)
- 5BT-2197 OR 5BT-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 28 1/2” x 30” - Net Weight (Dry)
110 lbs. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Rang
-40°F to 120° - Fluid Capacity
5-Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
AVAILABLE OPTIONS
Get a quote

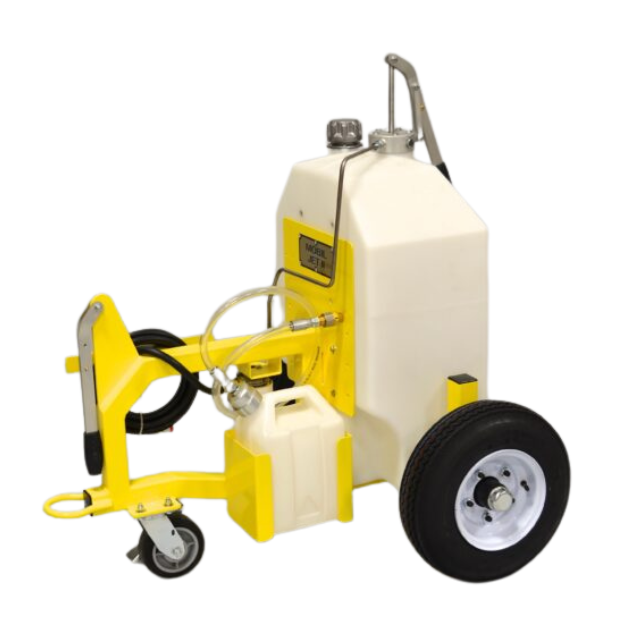

STANDARD 5-GALLON TOWABLE OIL DISPENSER WITH OVERFLOW CONTAINER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number ( 5ST - OIL TYPE)
- EXAMPLE:
5ST-2197 OR 5ST-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 28 1/2” x 30” - Net Weight (Dry)
110 lb. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
5-Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
AVAILABLE OPTIONS
Get a quote
5-Gallon Oil Servicing
Dispenser, Low Pressure, Standard Towable Cart
New P/N as of 30 September 2021 is 5G01STC-(Signify Oil), Old P/N 5ST-(Signify Oil) is now “FOR REFERENCE ONLY"
Our 5-gallon, Standard Towable Cart with Jerry Can, is USMDI’s go to for “flow through servicing”. Constant Speed Drives, Integrated Drive Generators, topping off engine oil and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, nospill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
STANDARD 5-GALLON TOWABLE OIL DISPENSER WITH OVERFLOW CONTAINER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number ( 5ST - OIL TYPE)
- EXAMPLE:
5ST-2197 OR 5ST-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 28 1/2” x 30” - Net Weight (Dry)
110 lb. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
5-Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
AVAILABLE OPTIONS
Get a quote
20-Gallon, Oil Servicing Dispenser, Low Pressure, Basic Towable Cart
New P/N as of 30 September 2021 is 20G01BTC-(Signify Oil), Old P/N 20BT-(Signify Oil) is now “FOR REFERENCE ONLY”
USMDI’s 20-gallon, Basic Towable Cart is mobile for larger fleet service. It’s also compatible for topping off engine oil and maintaining hydraulics systems, servicing Constant Speed Drives and Integrated Drive Generators on turbine engines. This products features can be adapted to customer specific needs, and has the potential for application in multiple industries where oil servicing is required. Its’ durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
20-GALLON TOWABLE OIL DISPENSER WITH OVERFLOW CONTAINER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number ( 20T - OIL TYPE)
- 20T-2197 OR 20T-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
48” x 45” x 36” - Net Weight (Dry)
150 lbs. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
20-Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
AVAILABLE OPTIONS
Get a quote
20-Gallon Oil
Servicing Dispenser, Low Pressure, Standard Towable Cart
New P/N as of 30 September 2021 is 20G01STC-(Signify Oil), Old P/N 20ST-(Signify Oil) is now “FOR REFERENCE ONLY"
This 20-gallon, Standard Towable Cart with added Jerry Can, has a larger capacity primarily used for “flow through servicing” of Constant Speed Drives and Integrated Drive Generators, topping off engine oil and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
20-GALLON TOWABLE OIL DISPENSER WITH OVERFLOW CONTAINER
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number ( 20T - OIL TYPE)
- 20T-2197 OR 20T-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
48” x 45” x 36” - Net Weight (Dry)
150 lbs. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
20-Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
AVAILABLE OPTIONS
Get a quote

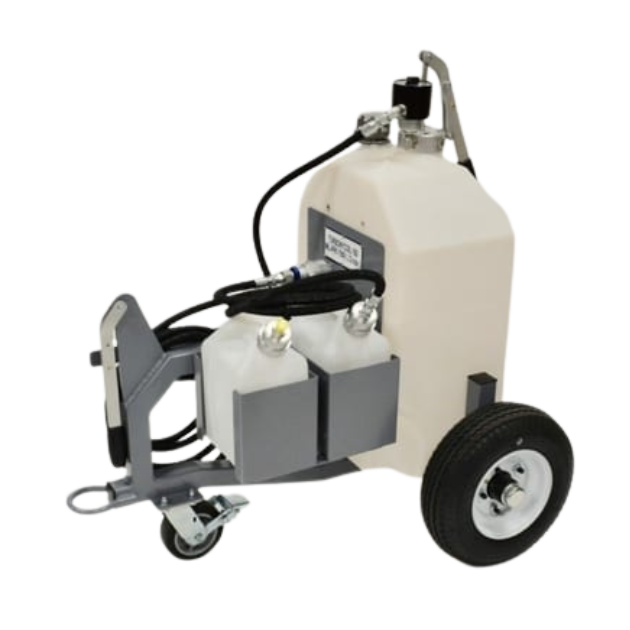

Engine Servicing 20-Gallon Towable
PART NUMBER
- 20 GL Towable Cart, MIL-PRF-7808
WEIGHTS AND DIMENSIONS
- Empty Weigh: 145 lb.
- MIL-PRF: 20ST-MIL-PRF-7808
- NSN: 3920016817104 – FLUID CART UOM: EA
SYSTEM FEATURES
- Heavy Duty Steel Frame with Standard Pintle Hook Tow Ring
- Color: 26173 Gray Semi-Gloss- 53.65-1.4-4.3 Ocean Gray
- Translucent Polyethylene Container
- USMDI Hi-Tech double seal- Hand Pump
- 15 Foot X 1/2 Inch. Hose‑MIL‑DTL‑8794
- Color- coded Fluid Signage
- Compatible Seals and Hoses
- 2 Brackets, for Jerry Cans -2
- Jerrycan Overflow Container
- 1 1/2 Gallon with Metal Cap and Clear Hose, #8 JIC Fittings, 8 feet NO COUPLER
- 30 mph Wheels and Bearings
- Front Caster with Foot Activated Brake
- Serial Number for easy Tracking
- Compatible With most fluids
- Environmentally Safe
- Aircraft Quick Couplers are Supplied by the Customer
Get a quote

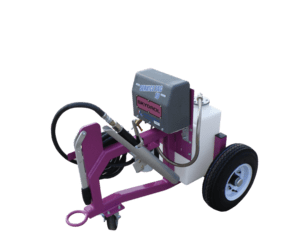

20- Gallon Oil Servicing Dispenser, Low Pressure, Mil Spec Towable Cart
New P/N as of 30 September 2021 is 20G01MSTC-(Signify Oil), Old P/N 20 GL Towable Cart-(Signify Oil) is now “FOR REFERENCE ONLY"
USMDI’s 20-gallon, MIL SPEC Standard Towable Cart meets military specifications and has two Jerry cans. Used for “flow through servicing” of Constant Speed Drives and Integrated Drive Generators, It’s also compatible for topping off engine oil and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, nospill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
Engine Servicing 20-Gallon Towable
PART NUMBER
- 20 GL Towable Cart, MIL-PRF-7808
WEIGHTS AND DIMENSIONS
- Empty Weigh: 145 lb.
- MIL-PRF: 20ST-MIL-PRF-7808
- NSN: 3920016817104 – FLUID CART UOM: EA
SYSTEM FEATURES
- Heavy Duty Steel Frame with Standard Pintle Hook Tow Ring
- Color: 26173 Gray Semi-Gloss- 53.65-1.4-4.3 Ocean Gray
- Translucent Polyethylene Container
- USMDI Hi-Tech double seal- Hand Pump
- 15 Foot X 1/2 Inch. Hose‑MIL‑DTL‑8794
- Color- coded Fluid Signage
- Compatible Seals and Hoses
- 2 Brackets, for Jerry Cans -2
- Jerrycan Overflow Container
- 1 1/2 Gallon with Metal Cap and Clear Hose, #8 JIC Fittings, 8 feet NO COUPLER
- 30 mph Wheels and Bearings
- Front Caster with Foot Activated Brake
- Serial Number for easy Tracking
- Compatible With most fluids
- Environmentally Safe
- Aircraft Quick Couplers are Supplied by the Customer
Get a quote
5-GALLON TOWABLE PNEUMATIC SERVICING UNIT
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- PART NUMBER ( 5TP - OIL TYPE)
- 5TP-2197 OR 5TP-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
48” x 45” x 36” - Net Weight (Dry)
150 lbs. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
5-Gallon (7.6 L) - Pressure Output
1-110 PSI (30.28 - 37.85 KPA) - Pump Air or Nitrogen
- Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
Get a quote

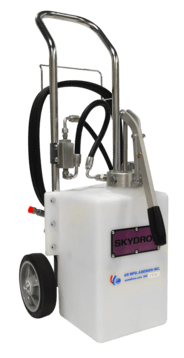

5-Gallon Oil Servicing Dispenser, Low Pressure/High Volume, Basic Towable Cart, Pneumatic
New P/N as of 30 September 2021 is 5G02BTC-P-(Signify Oil), Old P/N 5TP-(Signify Oil) is now “FOR REFERENCE ONLY"
USMDI’s 5-gallon, Low Pressure/High Volume, Basic Towable Cart is capable of delivering both large volumes and light service volumes to meet larger aircraft systems and fleet needs. Applicable for servicing Constant Speed Drives and Integrated Drive Generators, topping off engine oil, and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
5-GALLON TOWABLE PNEUMATIC SERVICING UNIT
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- PART NUMBER ( 5TP - OIL TYPE)
- 5TP-2197 OR 5TP-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
48” x 45” x 36” - Net Weight (Dry)
150 lbs. (49.89kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
5-Gallon (7.6 L) - Pressure Output
1-110 PSI (30.28 - 37.85 KPA) - Pump Air or Nitrogen
- Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
Get a quote
Engine Servicing 20 Gallon Towable
TWO PUMP SYSTEM
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number 10749
- ENGINE OIL AVAILABLE
WEIGHTS AND DIMENSIONS
- Product Dimension
48” x 45” x 36” - Net Weight (Dry)
175 lbs. (79.4kg) - Shipping Carton - Pallet
TWO PUMP SYSTEM
PUMP ONE
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
20 Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose ½” DIA.
- Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available) - Designed for cold weather use
PUMP TWO
- Pressure Output
1-110 PSI (30.28 - 37.85 KPA) - Pump Air or Nitrogen
- Hose ½” DIA.
- Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available) - Designed for cold weather use
EACH SYSTEM INCLUDES
- 20 GL Towable Cart, MIL-PRF-7808
- Heavy Duty Steel Frame with Standard Pintle Hook Tow Ring
- Translucent Polyethylene Container
- USMDI Hi-Tech double seal- Hand Pump
- 15 Foot X 1/2 Inch. Hose
- Color- coded Fluid Signage
- Compatible Seals and Hoses
- 30 mph Wheels and Bearings
- Front Caster with Foot Activated Brake
- Serial Number for easy Tracking
- Compatible With most fluids
- Environmentally Safe
- Aircraft Quick Couplers are Supplied by the Customer.
Get a quote

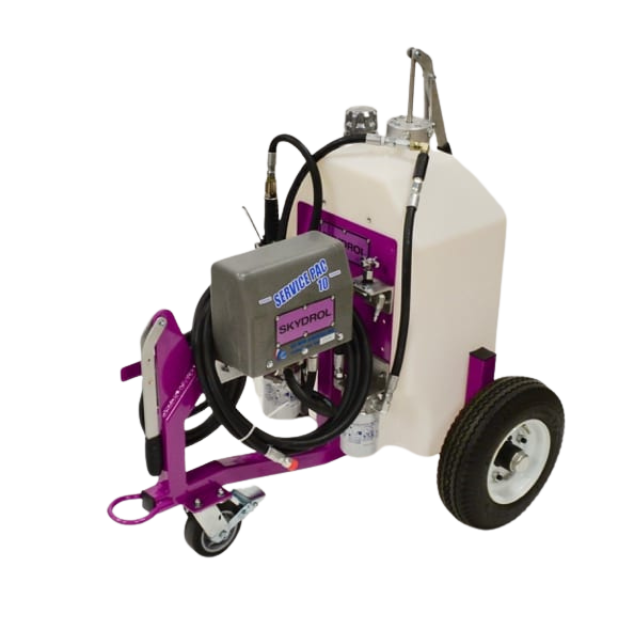

20-Gallon Oil Servicing Dispenser, Low Pressure/High Volume, Basic Towable Cart, Pneumatic/Manual
New P/N as of 30 September 2021 is 20G02BTC-PM-(Signify Oil), Old P/N 10749 is now “FOR REFERENCE ONLY"
Our 20-gallon, Low Pressure/High Volume, Basic Towable Cart is capable of delivering both large volume and light service volume to meet larger aircraft systems and fleet needs. Applicable for servicing Constant Speed Drives, Integrated Drive Generators, topping off engine oil, and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
Engine Servicing 20 Gallon Towable
TWO PUMP SYSTEM
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
- Part Number 10749
- ENGINE OIL AVAILABLE
WEIGHTS AND DIMENSIONS
- Product Dimension
48” x 45” x 36” - Net Weight (Dry)
175 lbs. (79.4kg) - Shipping Carton - Pallet
TWO PUMP SYSTEM
PUMP ONE
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
20 Gallon (7.6 L) - Pressure Output
175 PSI (1206.5 KPA) - Volume per Stroke
¼ PINT (120 cc) - Hose ½” DIA.
- Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available) - Designed for cold weather use
PUMP TWO
- Pressure Output
1-110 PSI (30.28 - 37.85 KPA) - Pump Air or Nitrogen
- Hose ½” DIA.
- Hose Length
15 Foot - Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available) - Designed for cold weather use
EACH SYSTEM INCLUDES
- 20 GL Towable Cart, MIL-PRF-7808
- Heavy Duty Steel Frame with Standard Pintle Hook Tow Ring
- Translucent Polyethylene Container
- USMDI Hi-Tech double seal- Hand Pump
- 15 Foot X 1/2 Inch. Hose
- Color- coded Fluid Signage
- Compatible Seals and Hoses
- 30 mph Wheels and Bearings
- Front Caster with Foot Activated Brake
- Serial Number for easy Tracking
- Compatible With most fluids
- Environmentally Safe
- Aircraft Quick Couplers are Supplied by the Customer.
Get a quote
5-GALLON MOUNTABLE ELECTRIC UNIT
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
-
PART NUMBER 5E-OIL TYPE
and the Oil Sign. - EXAMPLE: 5E-2197 OR 5E-SKYDROL
WEIGHTS AND DIMENSIONS
- PRODUCT DIMENSION:
24-1/2” x 18-1/2” x 10” - NET WEIGHT (DRY)
75 lbs. - SHIPPING CARTON PALLET
LOW PRESSURE UNIT
-
- 12 VOLT PUMP
-
- 40 AMP CURCUIT BREAKER
-
- FLUID CAPACITY
5-GALLONS (18.9 L)
- FLUID CAPACITY
-
- PRESSURE OUTPUT
20 PSI AT 3-5 GALLONS/MINUTE
- PRESSURE OUTPUT
-
- 40 AMP CIRCUIT BREAKER
-
- HOSE LENGTH
20 FT
- HOSE LENGTH
- SPIN-ON FILTER
10 MICRON NOMINAL
(3 MICRON IS AVAILABLE)
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
5-Gallon Oil
Servicing Dispenser, Low Pressure/High Volume, Wall/Surface/Vehicle Mounted, Electric
New P/N as of 30 September 2021 is 5G02WSV-E-(Signify Oil), Old P/N 5E-(Signify Oil) is now “FOR REFERENCE ONLY"
USMDI’s 5-gallon, Low Pressure/High Volume, Wall/Surface/Vehicle Mounted, Electric unit is capable of delivering both large volumes and light service volumes to meet larger aircraft systems and fleet needs. It’s also positionally versatile for mounting on pickup or lift trucks, trailers, and electric carts. Used in servicing Constant Speed Drives, Integrated Drive Generators, topping off engine oil, and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
5-GALLON MOUNTABLE ELECTRIC UNIT
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SYSTEM
-
PART NUMBER 5E-OIL TYPE
and the Oil Sign. - EXAMPLE: 5E-2197 OR 5E-SKYDROL
WEIGHTS AND DIMENSIONS
- PRODUCT DIMENSION:
24-1/2” x 18-1/2” x 10” - NET WEIGHT (DRY)
75 lbs. - SHIPPING CARTON PALLET
LOW PRESSURE UNIT
-
- 12 VOLT PUMP
-
- 40 AMP CURCUIT BREAKER
-
- FLUID CAPACITY
5-GALLONS (18.9 L)
- FLUID CAPACITY
-
- PRESSURE OUTPUT
20 PSI AT 3-5 GALLONS/MINUTE
- PRESSURE OUTPUT
-
- 40 AMP CIRCUIT BREAKER
-
- HOSE LENGTH
20 FT
- HOSE LENGTH
- SPIN-ON FILTER
10 MICRON NOMINAL
(3 MICRON IS AVAILABLE)
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote

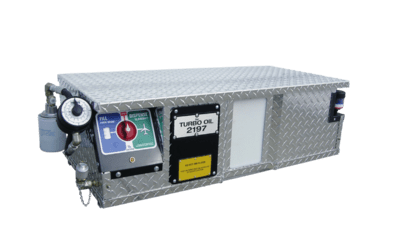

25-GALLON MOUNTABLE ELECTRIC OIL DISPENSER
PART NUMBERING SYSTEM
-
Part Number: 25-OIL TYPE
- EXAMPLE:
25E-2197 OR 25E-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
20” x 42” x 14” - Net Weight (Dry)
75 lb. (34.019 KG) - SHIPPING PALLET
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - 12 Volt Pump
- 40 AMP Circuit Breaker
- Fluid Capacity
25 Gallon (94.63 L) - Pressure Output
20 PSI.@ 10 Gallons /Minute - Hose Length
20 Foot - Filter (Spin-On)
- 10 Micron Nominal(3 Micron Available)
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
25-Gallon Oil
Servicing Dispenser, Low Pressure/High Volume, Wall/Surface/Vehicle Mounted, Electric
New P/N as of 30 September 2021 is 25G02WSV-E-(Signify Oil), Old P/N 25E-(Signify Oil) is now “FOR REFERENCE ONLY"
This 25-gallon, Low Pressure/High Volume, Wall/Surface/Vehicle Mounted, Electric unit is capable of delivering both large volumes and light service volumes to meet larger aircraft systems and fleet needs, also positionally versatile for mounting on pickup or lift trucks, trailers, and electric carts. Used in servicing Constant Speed Drives, Integrated Drive Generators, topping off engine oil, and maintaining hydraulics systems. Closed containment system that mitigates environmental contamination is built in. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. This unit can be designated to a variety of oil types by color and signage.
25-GALLON MOUNTABLE ELECTRIC OIL DISPENSER
PART NUMBERING SYSTEM
-
Part Number: 25-OIL TYPE
- EXAMPLE:
25E-2197 OR 25E-SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
20” x 42” x 14” - Net Weight (Dry)
75 lb. (34.019 KG) - SHIPPING PALLET
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - 12 Volt Pump
- 40 AMP Circuit Breaker
- Fluid Capacity
25 Gallon (94.63 L) - Pressure Output
20 PSI.@ 10 Gallons /Minute - Hose Length
20 Foot - Filter (Spin-On)
- 10 Micron Nominal(3 Micron Available)
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote

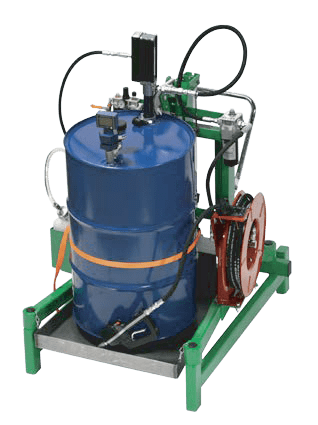

THE SERVICE STATION
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
55 Gallon Drum platform
(Can be moved by a forklift)
PART NUMBERING SYSTEM
- Part Number 10676
WEIGHTS AND DIMENSIONS
- Product Dimension
49.50” x 41.00” x 47.00” - Net Weight (Dry)
600 lbs. (272.15 kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
55 Gallon (208.20 L) - Pressure Output
0-110 PSI (49.90 KPA) - Hose Length 50 Foot
- Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
- Maximum load capacity of 880 lbs.
- Equipped with a single jaw clamp assembly Hydraulic Drum Lift
- Drip Pan
- Digital metering valve
- Hose Reel with 50-foot hose
- 10 Micron OR 3 Micron Filtration System
- Pneumatic Filtration System
- Emergency Shut-Off Valve
- All Steel Construction
- Air Driven Gear Pump Available and Drum bung kit
- Drum bung kit
- Overflow container
- Drum not included
We will design and build all systems to meet the customers specifications.
Get a quote
55-Gallon Oil Servicing Station, Low Pressure/High Volume, Stationary/Portable, Pneumatic
New P/N as of 30 September 2021 is 55G02SS-P-(Signify Oil), Old P/N 10676 is now “FOR REFERENCE ONLY"
Our 55-gallon, Oil Servicing Station, Low Pressure/High Volume, Pneumatic unit is capable of delivering bulk oil volumes to meet larger fleet needs, also positionally versatile, it can be stationary or mobile, and is used in areas where explosion proof hazards are considered. Used in servicing Constant Speed Drives, Integrated Drive Generators, topping off engine oil, and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
THE SERVICE STATION
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
55 Gallon Drum platform
(Can be moved by a forklift)
PART NUMBERING SYSTEM
- Part Number 10676
WEIGHTS AND DIMENSIONS
- Product Dimension
49.50” x 41.00” x 47.00” - Net Weight (Dry)
600 lbs. (272.15 kg) - Shipping Carton - Pallet
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
55 Gallon (208.20 L) - Pressure Output
0-110 PSI (49.90 KPA) - Hose Length 50 Foot
- Filter (SPIN-ON)
10 Micron Nominal (3 Micron Available)
EACH SYSTEM INCLUDES
- Maximum load capacity of 880 lbs.
- Equipped with a single jaw clamp assembly Hydraulic Drum Lift
- Drip Pan
- Digital metering valve
- Hose Reel with 50-foot hose
- 10 Micron OR 3 Micron Filtration System
- Pneumatic Filtration System
- Emergency Shut-Off Valve
- All Steel Construction
- Air Driven Gear Pump Available and Drum bung kit
- Drum bung kit
- Overflow container
- Drum not included
We will design and build all systems to meet the customers specifications.
Get a quote
TRANSFER PAC (T-PAC)
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
VIEW SHOWS UNIT WITH HOSE REEL. NOT A PART OF KIT.
PART NUMBERING SYSTEM
- EXAMPLE: 10380 ENGINE OIL
10381 SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
11 1/2” x 5 1/2” x 9 1/4” - Net Weight (Dry)
21 lb. (9.5 kg) - SHIPPING PALLET
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
0-10 gpm (0-40 kg) - Pressure Output
0-100 psi (0-400 KPA) - Pump, Gear Air or Nitrogen
- Hose Length
15 Foot - Filter (Spin-on)
10 Micron Nominal 3 Micron Available
EACH SYSTEM INCLUDES
Get a quote

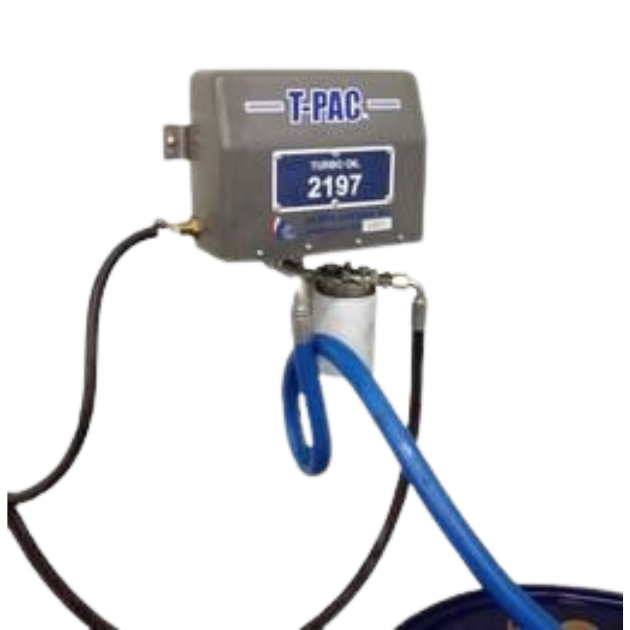

TPAC Oil Servicing Dispenser, Low Pressure/High Volume, Wall/Surface Mounted, Pneumatic
New P/N as of 30 September 2021 is TPAC02WS-P-(Signify Oil), Old P/N 10380 is now “FOR REFERENCE ONLY"
USMDI’s TPAC, Oil Servicing Dispenser, Low Pressure/High Volume, Wall/Surface, Pneumatic unit is capable of delivering bulk oil volumes to meet larger fleet needs, also positionally versatile for walls and surfaces. Used in servicing Constant Speed Drives, Integrated Drive Generators, topping off engine oil, and maintaining hydraulics systems. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
TRANSFER PAC (T-PAC)
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
VIEW SHOWS UNIT WITH HOSE REEL. NOT A PART OF KIT.
PART NUMBERING SYSTEM
- EXAMPLE: 10380 ENGINE OIL
10381 SKYDROL
WEIGHTS AND DIMENSIONS
- Product Dimension
11 1/2” x 5 1/2” x 9 1/4” - Net Weight (Dry)
21 lb. (9.5 kg) - SHIPPING PALLET
LOW PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
0-10 gpm (0-40 kg) - Pressure Output
0-100 psi (0-400 KPA) - Pump, Gear Air or Nitrogen
- Hose Length
15 Foot - Filter (Spin-on)
10 Micron Nominal 3 Micron Available
EACH SYSTEM INCLUDES
Get a quote
2-GALLON C-DUCT PUMP
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SIGN
- 10482 OPEN C-DUCT
WEIGHTS AND DIMENSIONS
- Product Dimension
16” x 13” x 16” - Net Weight (Dry)
30 lb. (13.607) - Shipping Carton
18” x 14” x 12”
HIGH PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
2 Gallon (7.6 L) - Pressure Output Single Acting
5000 PSI (34473.78 kpa) - Hose Length
15 Foot - Filter 10 Micron Nominal (
(3 Micron Available)
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
2-Gallon Oil Servicing Dispenser,
High Pressure, Unit
New P/N as of 30 September 2021 is 2G03U-(Signify Oil), Old P/N 10482 is now “FOR REFERENCE ONLY"
USMDI’s 2-gallon, High Pressure, unit is in high demand. its versatility in maintenance actions makes it one of our top products. Used for opening C-Duct cowlings, calibrating or adjusting thrust reversers, servicing landing gear, and control surfaces. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
2-GALLON C-DUCT PUMP
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SIGN
- 10482 OPEN C-DUCT
WEIGHTS AND DIMENSIONS
- Product Dimension
16” x 13” x 16” - Net Weight (Dry)
30 lb. (13.607) - Shipping Carton
18” x 14” x 12”
HIGH PRESSURE UNIT
- Operating Temperature Range
-40°F to 120° - Fluid Capacity
2 Gallon (7.6 L) - Pressure Output Single Acting
5000 PSI (34473.78 kpa) - Hose Length
15 Foot - Filter 10 Micron Nominal (
(3 Micron Available)
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
5-GALLON C-DUCT PUMP CART
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SIGN
-
10483 OPEN C-DUCT
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 18 1/2” x 24 1/2” - Net Weight (Dry)
57 lbs. (25.854 kg.) - Shipping Carton
20 1/2” x 18 1/2” x 40”
HIGH PRESSURE UNIT
-
- Operating Temperature Range
-40°F to 120°
- Operating Temperature Range
-
- Fluid Capacity
5-Gallon (18.9 L)
- Fluid Capacity
-
- Pressure Output Single Acting
5000 PSI (34473.78 KPA)
- Pressure Output Single Acting
- Hose Length
15 Foot
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
5-Gallon Oil Servicing Dispenser,
High Pressure, Cart
New P/N as of 30 September 2021 is 5G03C-(Signify Oil), Old P/N 10483-(Signify Oil) is now “FOR REFERENCE ONLY"
USMDI’s 5-gallon, High Pressure, unit is in high demand. its versatility in maintenance actions makes it one of our top products. Used for opening C-Duct cowlings, calibrating or adjusting thrust reversers, servicing landing gear, and control surfaces. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing is required. Its durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. Closed containment kit option is available. This unit can be designated to a variety of oil types by color and signage.
5-GALLON C-DUCT PUMP CART
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SIGN
-
10483 OPEN C-DUCT
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 18 1/2” x 24 1/2” - Net Weight (Dry)
57 lbs. (25.854 kg.) - Shipping Carton
20 1/2” x 18 1/2” x 40”
HIGH PRESSURE UNIT
-
- Operating Temperature Range
-40°F to 120°
- Operating Temperature Range
-
- Fluid Capacity
5-Gallon (18.9 L)
- Fluid Capacity
-
- Pressure Output Single Acting
5000 PSI (34473.78 KPA)
- Pressure Output Single Acting
- Hose Length
15 Foot
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
5-Gallon, Oil Servicing Dispenser, High Pressure, Basic Towable Cart
New P/N as of 30 September 2021 is 5G03BTC-(Signify Oil), Old P/N 10484-(Signify Oil) is now “FOR REFERENCE ONLY”
USMDI’s 5-gallon, High Pressure, Basic Towable Cart in high demand. It’s mobility for larger fleet service and versatility for maintenance actions makes it one of our top products. Used for opening C-Duct cowlings, calibrating or adjusting thrust reversers, and control surfaces, servicing landing gear. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing and maintenance is required. Its features durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. This unit can be designated to a variety of oil types by color.
5-GALLON C-DUCT PUMP CART
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SIGN
-
5GB03BTC-(Signify Oil)
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 18 1/2” x 24 1/2” - Net Weight (Dry)
57 lbs. (25.854 kg.) - Shipping Carton
20 1/2” x 18 1/2” x 40”
HIGH PRESSURE UNIT
-
- Operating Temperature Range
-40°F to 120°
- Operating Temperature Range
-
- Fluid Capacity
5-Gallon (18.9 L)
- Fluid Capacity
-
- Pressure Output Single Acting
5000 PSI (34473.78 KPA)
- Pressure Output Single Acting
- Hose Length
15 Foot
EACH SYSTEM INCLUDES
SYSTEM FEATURES
Get a quote
5-Gallon, Oil Servicing Dispenser, High Pressure, Basic Towable Cart, Manual/ Pneumatic
New P/N as of 30 September 2021 is 5G03BTC-PM-(Signify Oil), Old P/N 10484-(Signify Oil) is now “FOR REFERENCE ONLY”
This 5-gallon, High Pressure, Basic Towable Cart has pneumatic or manual operational option. It’s mobility for larger fleet service and versatility for maintenance actions makes it one of our top products. Used for opening C-Duct cowlings, calibrating or adjusting thrust reversers, and control surfaces, servicing landing gear. Our products design can be adapted to customer specific needs and has the potential for application in multiple industries where oil servicing and maintenance is required. Its features durable, all weather performance, environmentally sound, no-spill ergonomic design makes it easy to utilize. This unit can be designated to a variety of oil types by color.
5-GALLON C-DUCT PUMP CART
DO NOT USE WITH FUEL
DO NOT MIX FLUIDS
PART NUMBERING SIGN
-
5GB03BTC-PM-(Signify Oil)
WEIGHTS AND DIMENSIONS
- Product Dimension
42 1/2” x 18 1/2” x 24 1/2” - Net Weight (Dry)
57 lbs. (25.854 kg.) - Shipping Carton
20 1/2” x 18 1/2” x 40”
HIGH PRESSURE UNIT
-
- Operating Temperature Range
-40°F to 120°
- Operating Temperature Range
-
- Fluid Capacity
5-Gallon (18.9 L)
- Fluid Capacity
-
- Pressure Output Single Acting
5000 PSI (34473.78 KPA)
- Pressure Output Single Acting
- Hose Length
15 Foot
